PROJECT TRANSPARENCY & SUPPORTING DATA
554–556 Franklin Street
Addressing neighborhood feedback, traffic mitigations, parking data, and site planning details for the Franklin St multi-family development
As long-term builders in this region, our commitment extends well beyond unit counts—we view development through the lens of neighborhood stewardship. Melrose Highlands is an exceptional transit node with the potential to model how a community can thoughtfully expand its housing supply. By integrating smart infill development with existing commuter rail and retail infrastructure, this project provides a vital housing mix: enabling empty nesters to downsize locally while giving young professionals an accessible path back to their hometown.
Concentrating density near transit supports local storefronts, fosters pedestrian vitality, and reinforces regional transit investment. We design and build for a multi-generational timeline. Years from now, we look forward to sitting outside La Qchara, watching neighbors walk home from the Highlands train station, knowing we helped strengthen the long-term fabric of this community.
Traffic & Safety
Key Focus: Addressing existing roadway challenges through proactive civil engineering, altered vehicular access points, and enhanced pedestrian sightlines.
Melrose Highlands experiences distinct, localized traffic congestion—driven primarily by MBTA commuter rail gate delays, narrow road geometry, and Franklin Street’s role as a major arterial connector between Melrose, Stoneham, and I-93. Local topography, particularly the bend near Vinton Street, further restricts driver visibility at the exact point where vehicles need to transition into a pedestrian-attentive mindset.
Throughout the Zoning Board of Appeals (ZBA) process, public hearings, and individual abutter consultations, we received detailed feedback from neighbors, Ward Councilor Karamcheti, the Planning Department, and the Mayor. We translated this collaborative input directly into concrete architectural and civil design modifications to mitigate traffic impacts and elevate neighborhood safety.
-
Moving the primary vehicle entrance off Franklin St onto Belmont St eliminates the existing curb cut, drastically reducing arterial corridor congestion.
-
Move-in vehicles are restricted to an internal garage bay (sized for 20' trucks) and dedicated off-street loading areas, preventing moving vans from blocking Franklin St traffic.
-
GPS navigation markers, prominent signage, and restricted buzz-in access direct all delivery drivers and rideshares straight to the municipal lot side entrance.
Parking
Key Focus: Evaluating municipal parking surveys, overnight permit trends, and real-world occupancy data across Melrose Highlands.
Planning decisions should be driven by empirical data. According to the City of Melrose Public Parking Survey, there are over 125 public parking spaces situated within 400 feet of the Melrose Highlands MBTA station.
Municipal permit records and field observations confirm that surrounding parking infrastructure operates with substantial reserve capacity:
Low Permit Utilization: Out of 250 citywide overnight parking passes issued in 2022, only 16 residents registered for the Highlands Commuter Rail lot and 4 for the Municipal lot. Recent records reflect even lower demand, with 15 and 2 passes issued, respectively.
Uncounted Street Reserve: Field counts consistently show off-street municipal lots operating well below peak capacity. Additionally, on-street parking along Belmont Street (near Melrose Street) remains consistently underutilized and offers additional immediate buffer capacity.
Real-World Local Precedent: Following the full lease-up and occupancy of The Ella, surrounding neighborhood parking availability has remained stable and unencumbered, demonstrating that transit-adjacent housing in the Highlands absorbs parking demand as modeled without impacting municipal spaces.

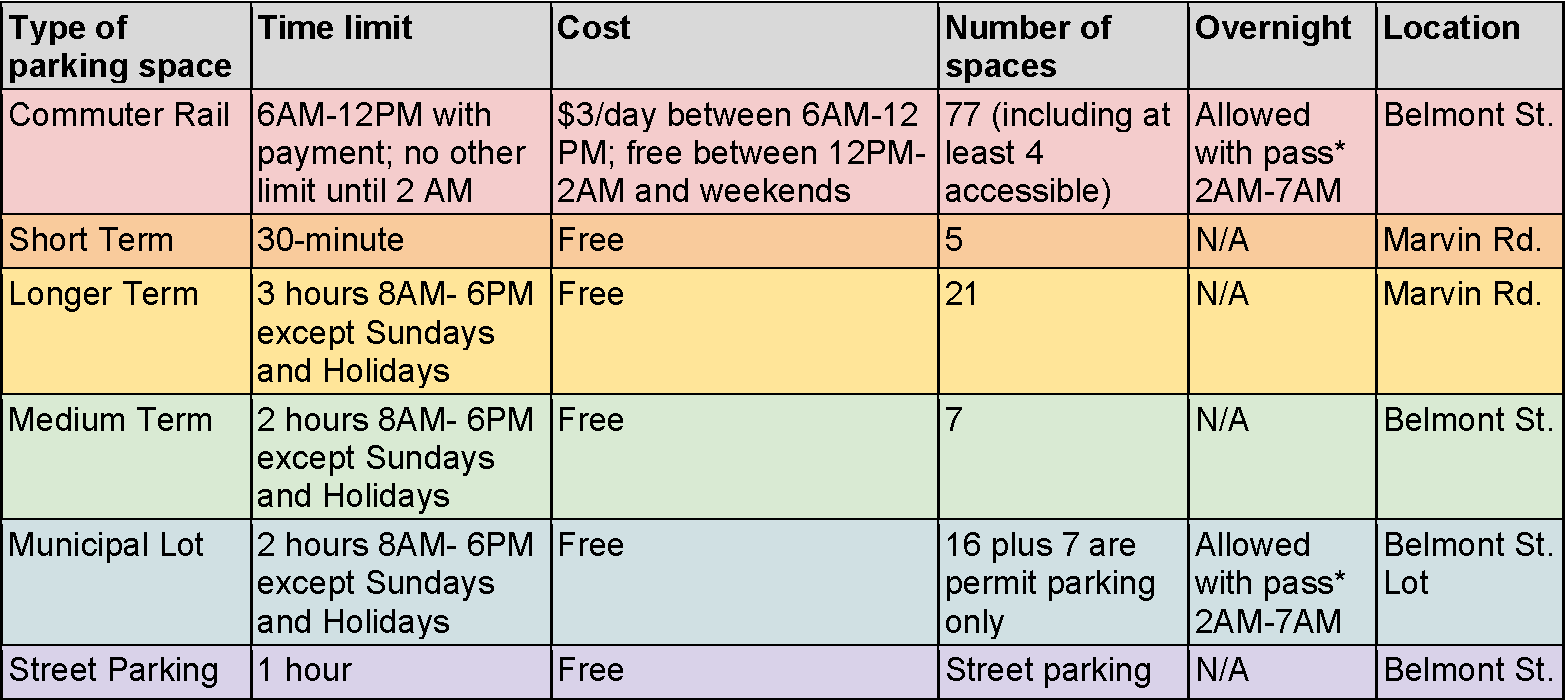

| Parking Type | Time Limit | Cost | Spaces | Location |
|---|---|---|---|---|
| Commuter Rail | 6am–12pm (Limit to 2am) | $3/day | 77 | Belmont St |
| Municipal Lot | 2 Hours (8am–6pm) | Free | 16 (+7 Permit) | Belmont St Lot |
| Medium Term | 2 Hours (8am–6pm) | Free | 7 | Belmont St |
| Longer Term | 3 Hours (8am–6pm) | Free | 21 | Marvin Rd |
| Short Term | 30-Minute Limit | Free | 5 | Marvin Rd |
| Street Parking | 1 Hour Limit | Free | Varies | Belmont St |

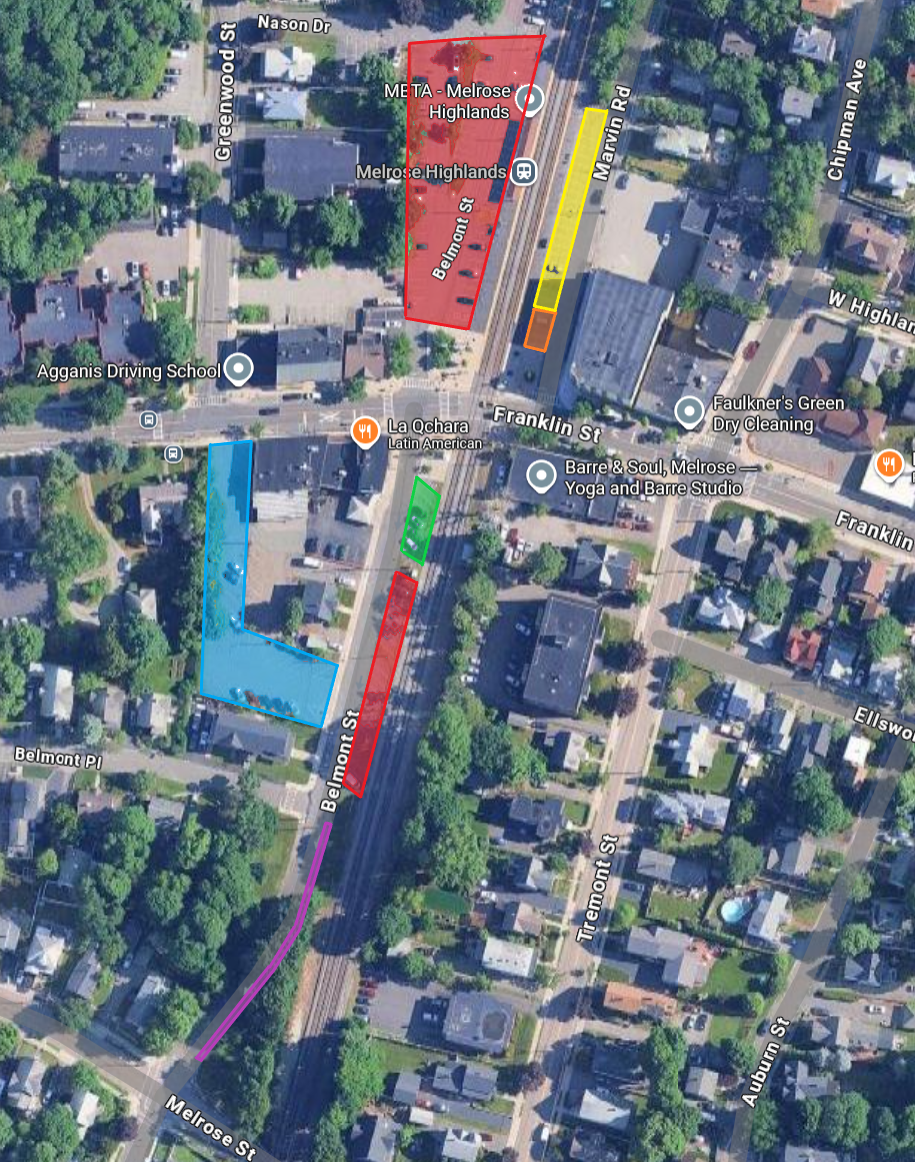

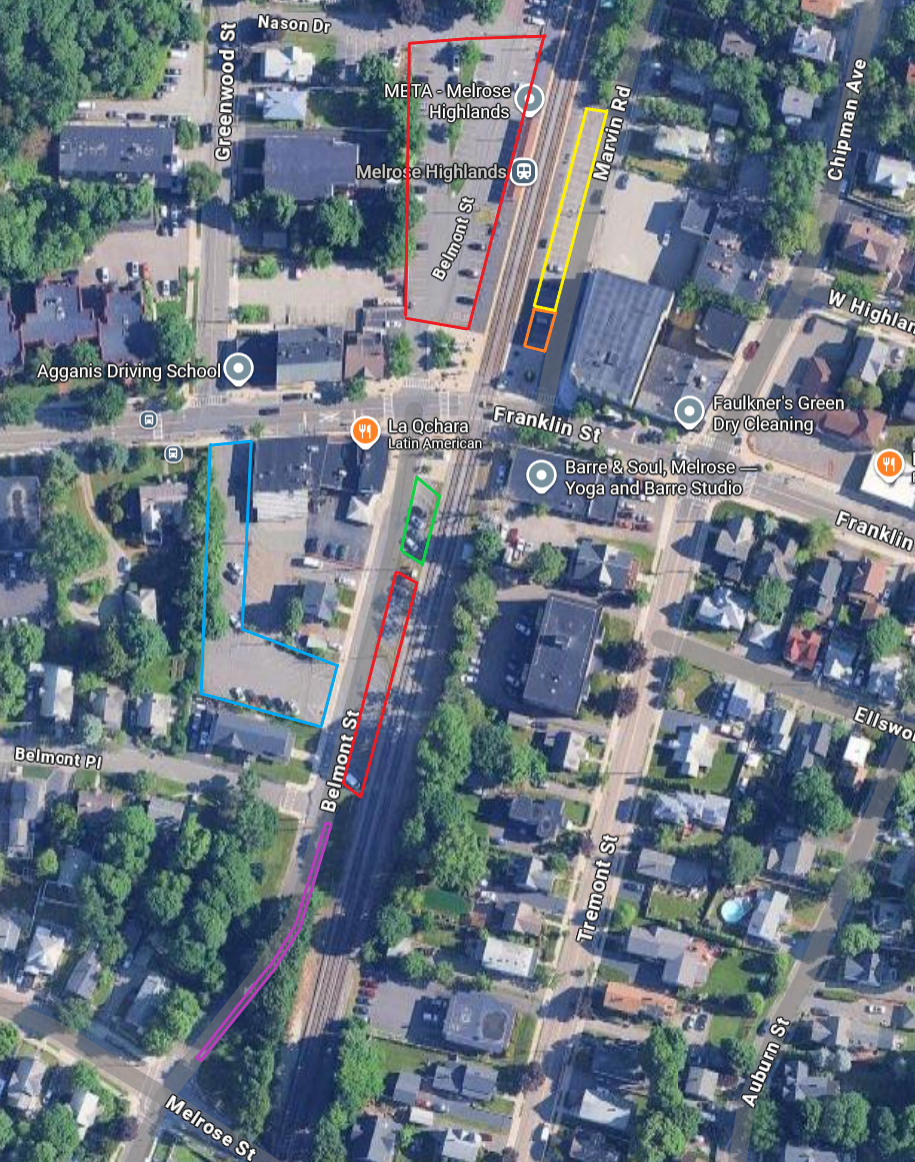

Highlands Public Parking Detail
Key Takeaway: Dispersing project traffic away from Franklin Street directly addresses the fundamental challenge of a local business district operating on a restricted regional arterial.
A comprehensive evaluation of corridor dynamics in the Highlands highlights two primary drivers of local traffic:
Through-Traffic: The vast majority of vehicular volume on Franklin Street consists of through-traffic entering or exiting Melrose, rather than local residents and visitors accessing neighborhood storefronts or residences.
Geographic Bottlenecks: Natural barriers created by the Middlesex Fells Reservation and Spot Pond limit east-west transit options, making Franklin Street a primary arterial connector to points west. This forces regional commuter traffic directly through a compact business district already subject to intermittent MBTA rail crossing delays.
While single site developments cannot alter regional transportation patterns, site design can directly control local friction. Relocating vehicular entry and exit access entirely off Franklin Street represents the single most effective civil mitigation available—preventing new turning maneuvers on the arterial corridor and preserving traffic flow through the Highlands.
Setbacks & Massing
Key Focus: By optimizing the building footprint, 554–556 Franklin Street maintains a lower lot coverage percentage than many existing and recently approved area developments, preserving generous dimensional buffers for public-facing landscaping, vegetative screening, and tenant amenities.
Site planning for 554–556 Franklin Street prioritizes spatial buffers and ground-level transitions rather than maximizing maximum buildable footprint:
Lower Lot Coverage Ratio: The proposed design yields a lower overall lot coverage percentage than numerous approved commercial and residential structures throughout Melrose Highlands and greater Melrose.
Front Setback & Streetscape Integration: Rather than building directly to the property boundary, the front setback is intentionally expanded to allow for deep architectural landscaping, easing the visual transition between commercial and residential uses along Franklin Street.
Rear Buffer & Vegetative Screening: The rear setback accommodates a dedicated buffer zone featuring dense vegetative screening to protect privacy for adjacent abutters, alongside an outdoor amenity space for building residents.

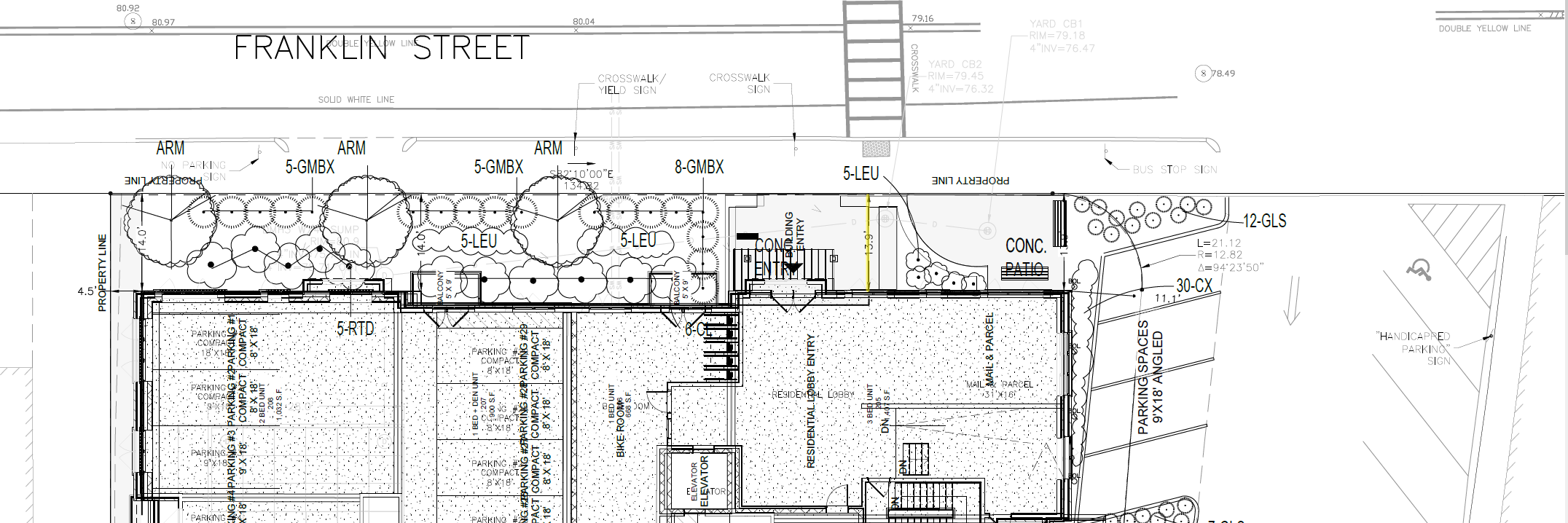

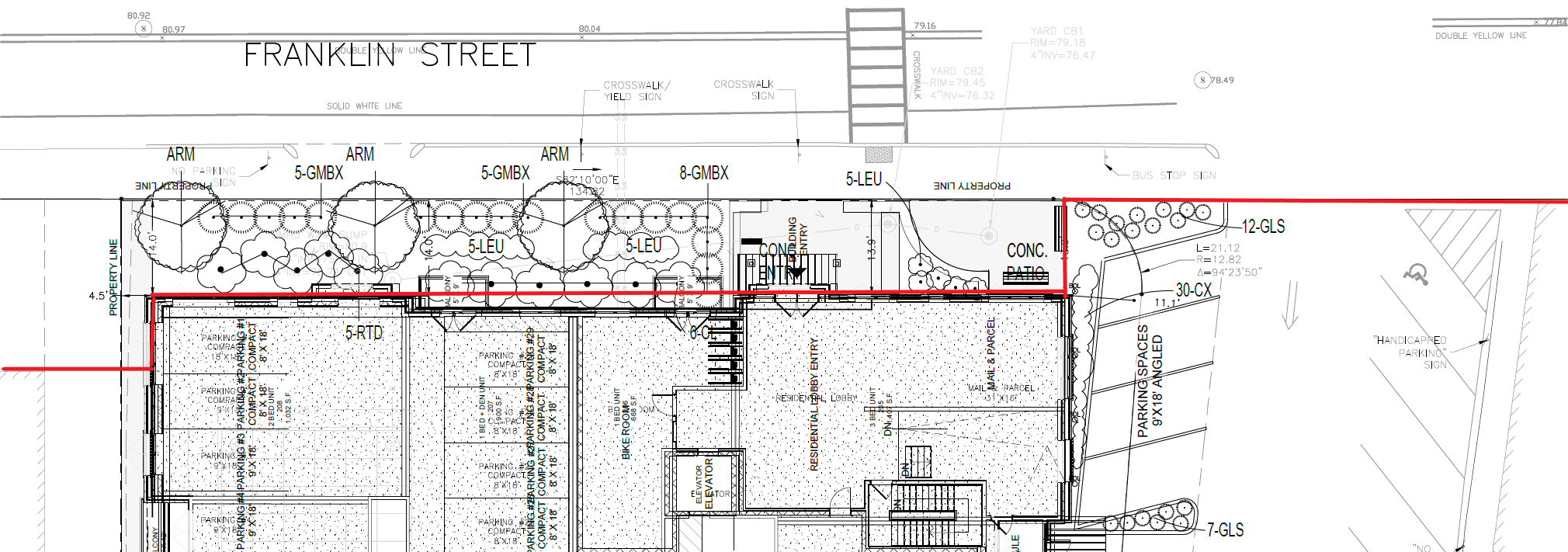

13.7 FT - Front Setback (21.7 ft from the curb)
At ground level, the structure is set back 13.7 feet (13' 9") from the front property line at its narrowest point. Including the ~8-foot public right-of-way buffer between the property boundary and the street, the building sits 21.7 feet from the curb line.

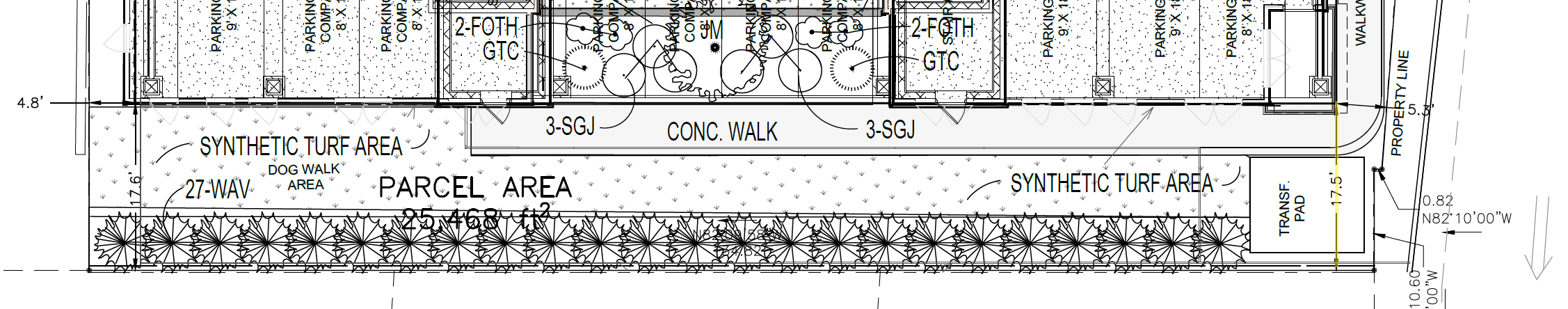

17.4 FT — Rear Setback (Property Line)
4th & 5th FLOOR — Upper-Story Step-Backs
At its narrowest point, the structure maintains a 17.4-foot (17' 5") rear setback from adjacent residential properties. This spatial buffer accommodates a dense vegetative landscape barrier for abutter privacy, as well as a dedicated resident dog walk area.
EAST BOUNDARY — Commercial Activation & Pedestrian Connection
WEST BOUNDARY — Residential Buffer & Soft Landscaping
The site plan serves as a deliberate urban bridge between the high-activity commercial corridor to the east and the established residential neighborhood to the west.
Use of Public Land
Key Focus: Formalizing a binding, perpetual easement agreement between Szecon Development and the City of Melrose to exchange land access, upgrade public amenities, and guarantee long-term maintenance at developer expense.
To formalize these improvements, Szecon and the City of Melrose will execute a reciprocal easement agreement that "runs with the land," making all public benefits and maintenance duties permanently enforceable by the city across current and future property owners.

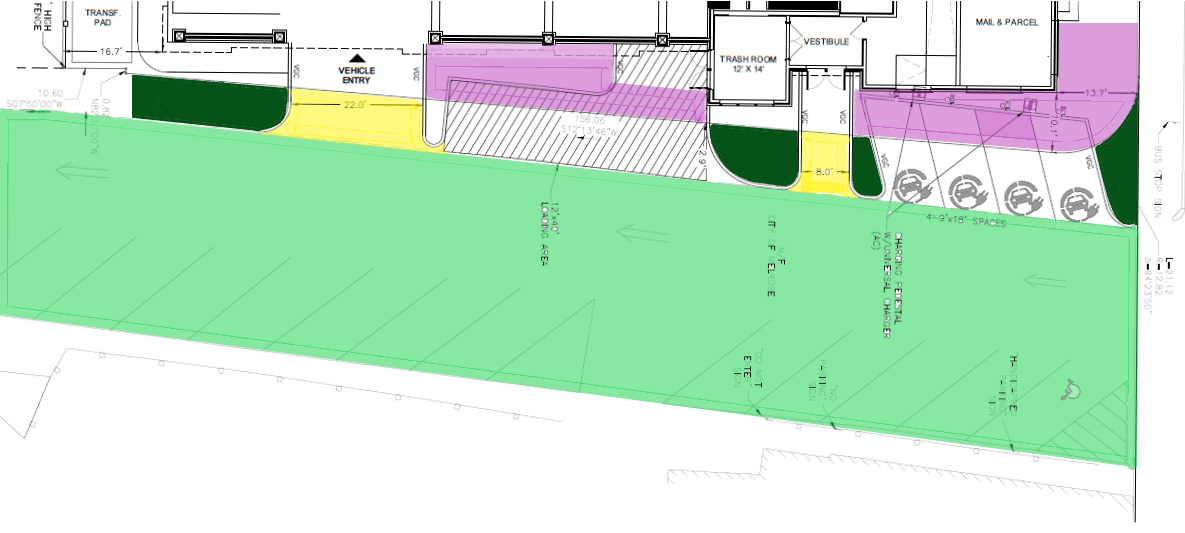

LIGHT GREEN — Existing Public Drive Aisle
City-owned vehicular drive aisle; remains 100% unchanged and open for public transit.
PURPLE — Private Land Dedicated to Public Use
Szecon-owned land permanently opened for public use, including 4 public EV charging bays (funded by developer), a shared commercial loading area for neighborhood businesses, and dedicated bus-stop seating.
YELLOW — Vehicular & Pedestrian Access Corridor
Traverses the city-owned street edge to connect the site's garage entrance and walkway directly to the public right-of-way.
DARK GREEN — Developer-Maintained Public Greenspace
City-owned parcel where Szecon will install, landscape, and permanently maintain green infrastructure at zero cost to taxpayers.
